EPFU
EPFU Details
INTRODUCTION
HUIYUAN's Enhanced Performance Fiber Unit (EPFU) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.
KEY FEATURES
Smaller diameter
Frees up capital to expand network and client base
Network design flexibility
5/3.5mm microduct suitable
Easy to upgrade
Greater blowing distance
Fiber: G.G652D, G.657A1, G.657A2
SPECIFICATION

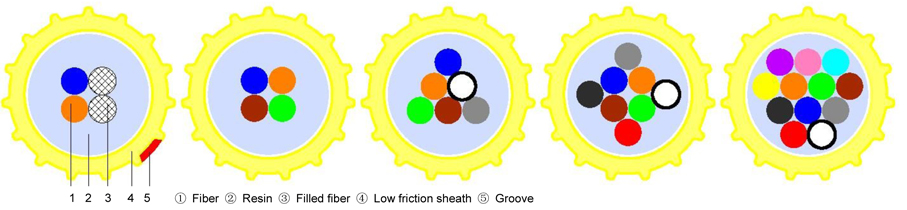

| P/N | Fiber count (F) |
Nominal diameter (mm) |
Nominal weight (kg/km) |
Min. bend radius (mm) |
Temperature (℃) |
| EPFU-2G652D-PE | 2 | 1.15±0.05 | 1 | 50 | -30 to +60 |
| EPFU-4G652D-PE | 4 | 1.15±0.05 | 1 | 50 | |
| EPFU-6G652D-PE | 6 | 1.35±0.05 | 1.3 | 60 | |
| EPFU-8G652D-PE | 8 | 1.50±0.05 | 1.8 | 80 | |
| EPFU-12G652D-PE | 12 | 1.65±0.05 | 2.2 | 80 |
BLOWING PERFORMANCE
| Fiber count (F) |
Blowing machine | Suitable microduct (mm) |
Blowing pressure (bar) |
Blowing distance (m) |
Blowing time (min) |
| 2 | PLUMETTAZ UM25 ERICSSON F CATWAY FBT-1.1 |
3/2.1 or 5/3.5 | 7/10 | 500/1000 | 10/18 |
| 4 | 3/2.1 or 5/3.5 | 500/1000 | 10/18 | ||
| 6 | 5/3.5 | 500/1000 | 10/18 | ||
| 8 | 5/3.6 | 500/1000 | 13/18 | ||
| 12 | 5/3.5 | 500/800 | 15/20 |
ABOUT P/N: EPFU-2G652D-PE
EPFU: cable type | 2: fiber count | G652D: G652D, G657A1, G657A2 available | PE: sheath material
